Electrical engineering experience across UK EV infrastructure projects

The projects below present a selection of EV charging schemes personally designed and technically supported by Jonathan across public charging, commercial destinations, fleet electrification and high-power eHGV infrastructure.

They range from individual commercial installations to complex, multi-megawatt charging hubs, covering early-stage feasibility and capacity assessment, DNO and infrastructure coordination, detailed LV distribution design, protection coordination, cable calculations, charger integration and multidisciplinary design development.

Together, these projects demonstrate a practical and technically rigorous approach to EV infrastructure design, with a clear focus on safe, coordinated and buildable electrical solutions.

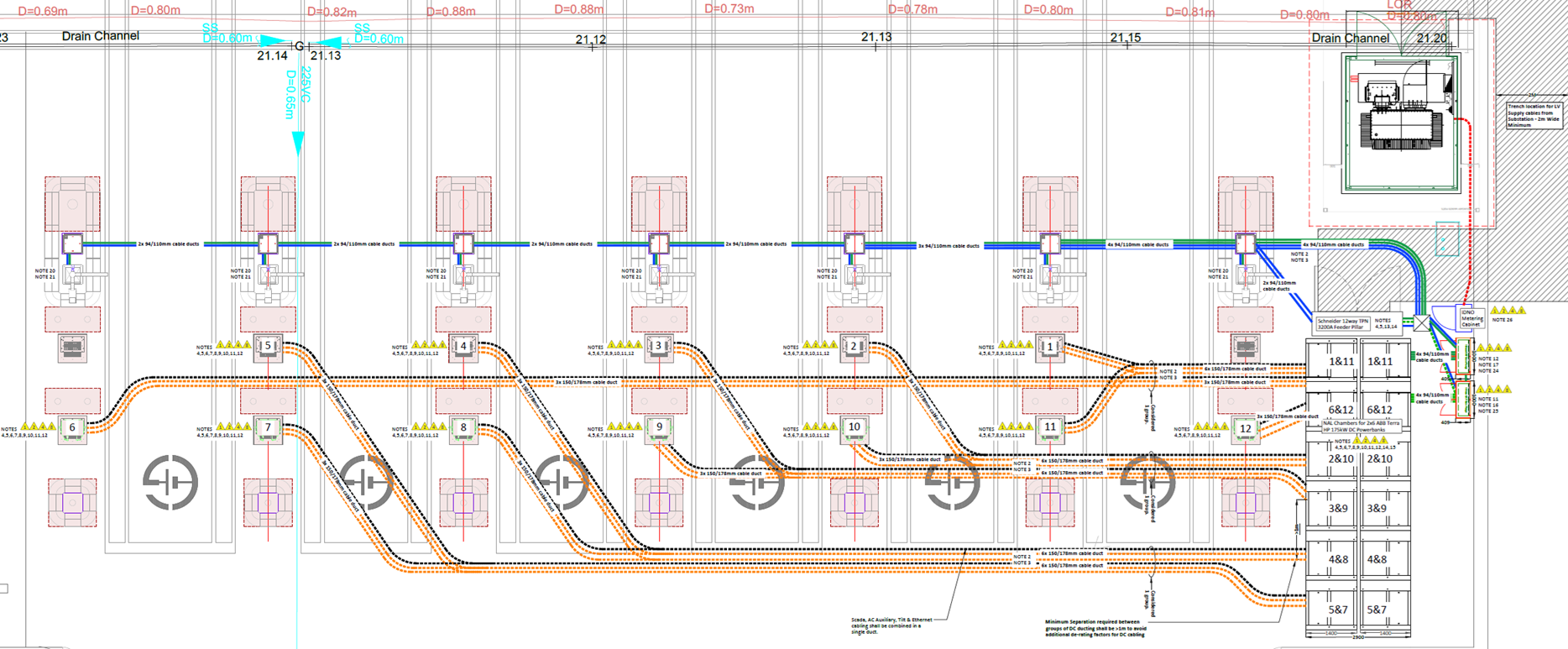

Underground duct routing drawing for a twelve-bay charging facility, showing the numbered charging bays, colour-coded duct runs back to a feeder pillar and metering cabinet, jointing chambers and notes on cable separation
eHGV / HIGH-POWER CHARGINGFleet & Logistics

Leeds Skelton Lake Services, 12-Bay High-Power eHGV Charging Hub

Detailed electrical infrastructure design for a 12-bay eHGV charging facility at Leeds Skelton Lake Services, with charging capacity of up to 350 kW per bay.

Read the full case study →

Delivered by

MGROUP

Deliverables

Electrical site layout · LV distribution schematic · IEC 60287 cable calculations · protection and RCD coordination · DC leakage assessment · cable schedules · TT earthing design · underground duct and services coordination

This scheme is an example of our eHGV charging infrastructure design work.

Visualisation of the charging destination: charging bays beneath a planted circular canopy on a former petrol station plot, with a single-storey store, cycle parking and landscaped planting beside a main road
ULTRA-RAPID PUBLIC CHARGINGCommercial / CPO

Manchester Charging Oasis, Former Petrol Station Redevelopment

Detailed electrical infrastructure design for the redevelopment of a former petrol station on Oldham Road, Manchester, into a flagship ultra-rapid EV charging destination.

Read the full case study →

Delivered by

MGROUP

Deliverables

Electrical charging layout · LV distribution schematic · AC and DC cable design · protection coordination · cable calculations and schedules · Kempower equipment integration · underground duct design · future charging provision · multidisciplinary design coordination

This scheme is an example of our AC and DC EV charging design work.

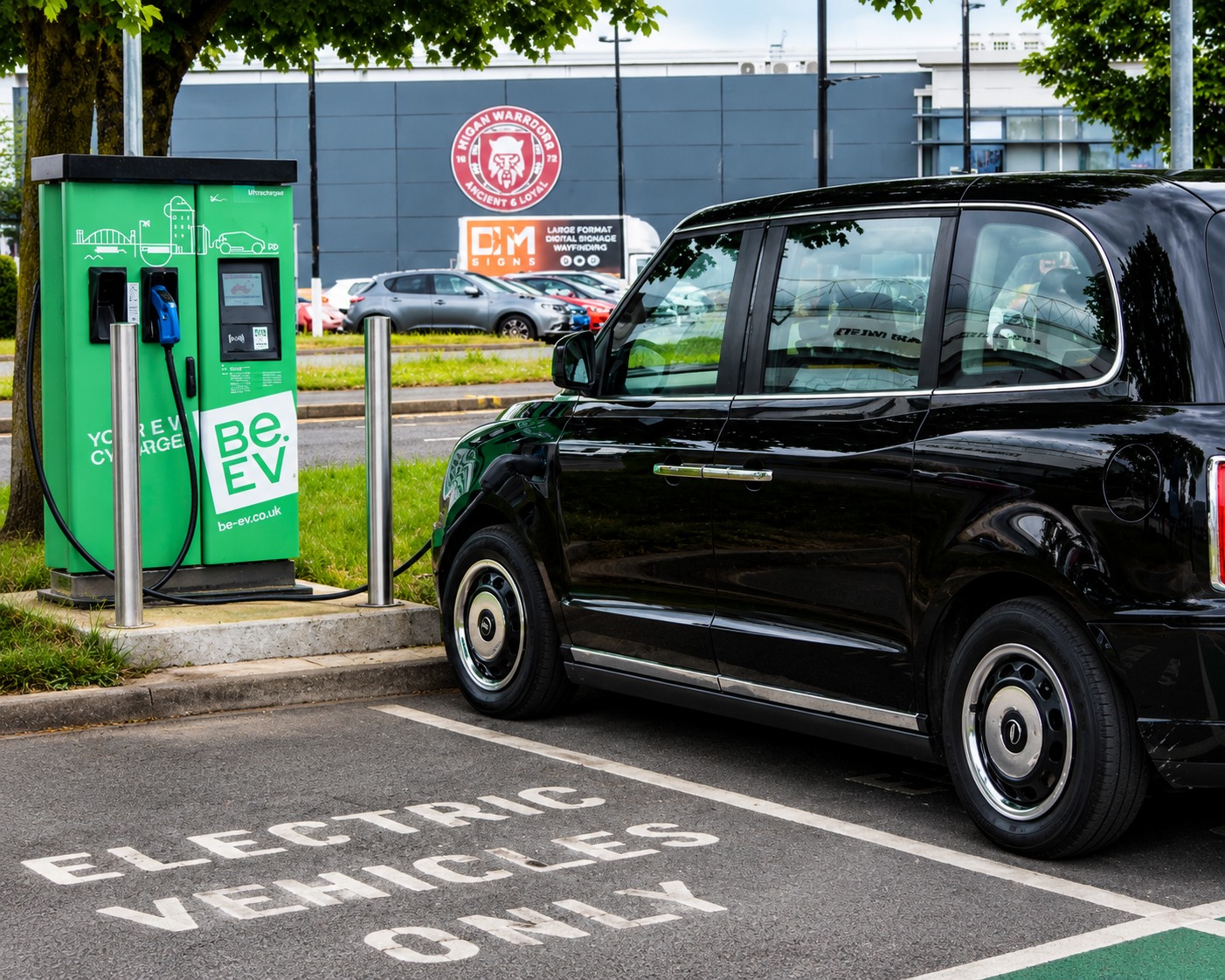

Black electric hackney carriage on charge from a green rapid charging unit, in a car park bay marked Electric Vehicles Only
RAPID TAXI CHARGINGPublic Sector

Greater Manchester Taxi Charging Infrastructure Programme

Electrical infrastructure design for a regional programme of dedicated rapid-charging sites delivered for Transport for Greater Manchester through the Be.EV network, supporting the transition of licensed Hackney carriage fleets to electric vehicles.

Read the full case study →

Delivered by

MGROUP

Deliverables

Electrical charging layouts · Swarco Raption 50 charger integration · cable calculations and schedules · protection coordination · simultaneous-contact risk assessment · protective-measure assessment · charger supply design · multidisciplinary coordination

This scheme is an example of our AC and DC EV charging design work.

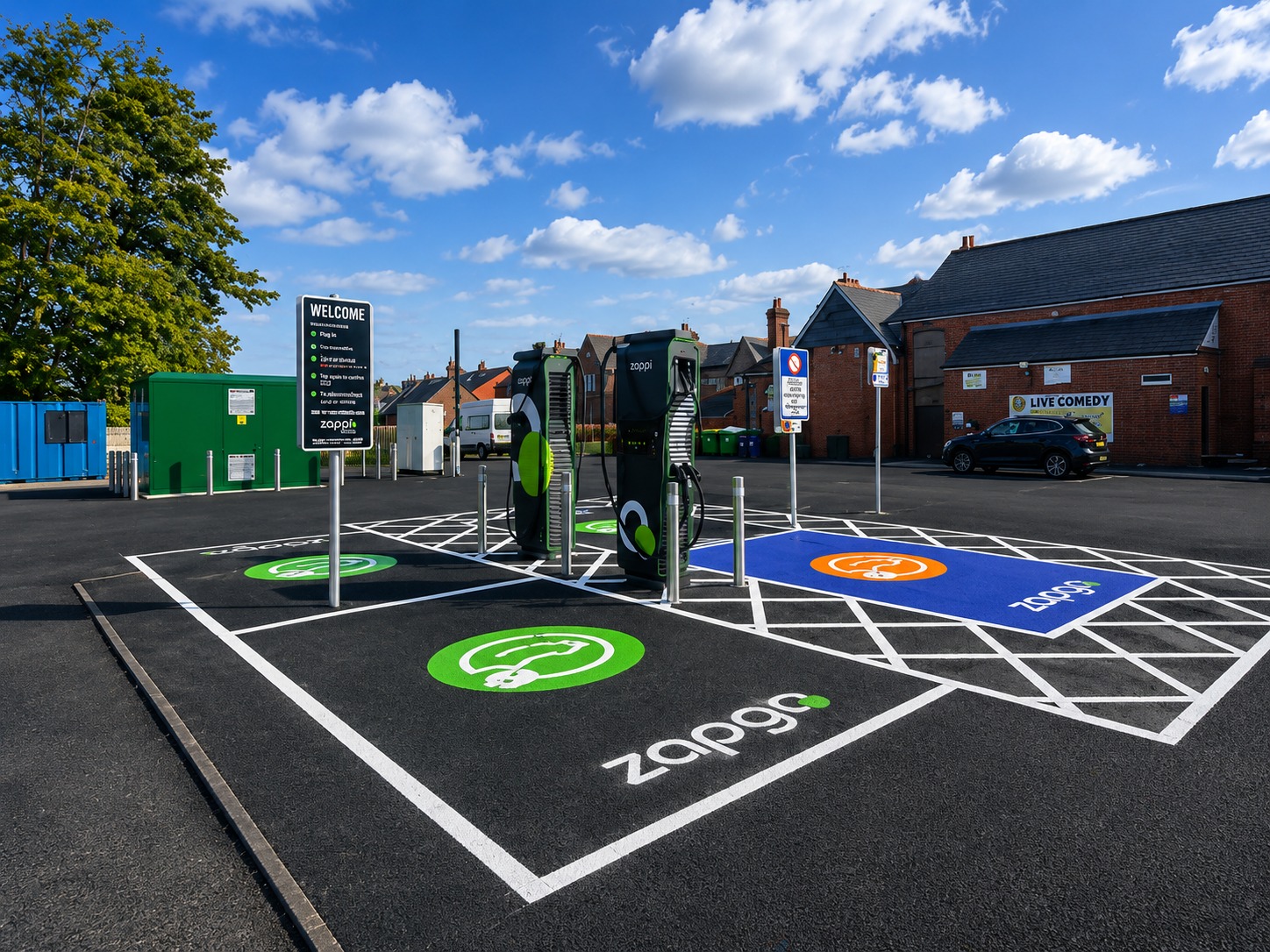

Two rapid charging units on a newly surfaced car park, serving green-marked charging bays and a blue accessible bay, with a ground-mounted electrical equipment cabinet behind
ULTRA-RAPID PUBLIC CHARGINGCommercial / CPO

Stanley Club, Burscough, Community Charging Hub

Detailed electrical infrastructure design for a new ultra-rapid EV charging hub at the Stanley Club in Burscough, Lancashire.

Read the full case study →

Delivered by

MGROUP

Deliverables

Electrical charging layout · HV and LV infrastructure coordination · distribution schematic · protection coordination · cable calculations and schedules · Alpitronic HYC200 integration · underground duct design · multidisciplinary coordination

This scheme is an example of our AC and DC EV charging design work.

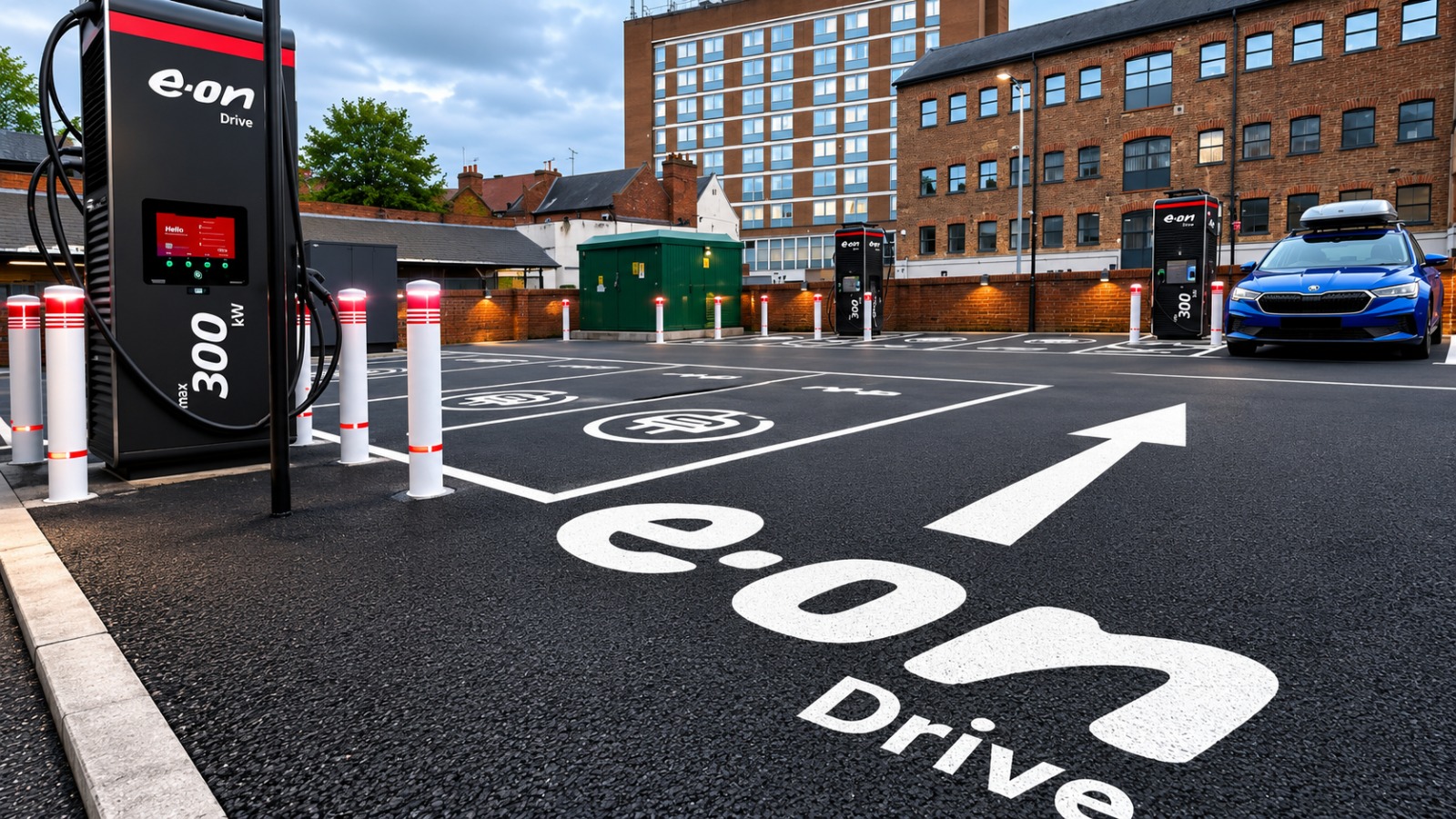

Ultra-rapid charging bays on a resurfaced urban car park at dusk, with tall charging units guarded by bollards, a green package substation behind and a car parked at the furthest unit
ULTRA-RAPID PUBLIC CHARGINGCommercial / CPO

Mill House, York, High-Capacity Urban Charging Hub

Detailed electrical infrastructure design for a new E.ON Drive ultra-rapid charging hub at Mill House in central York.

Read the full case study →

Delivered by

Premier Electrical Services Limited

Deliverables

Electrical charging layout · HV and LV infrastructure coordination · distribution schematic · cable calculations and schedules · fault-level and voltage-drop assessment · protection coordination · load-management requirements · Alpitronic HYC300 integration · lighting and CCTV supplies · designer's risk assessment

This scheme is an example of our specialist electrical design work.

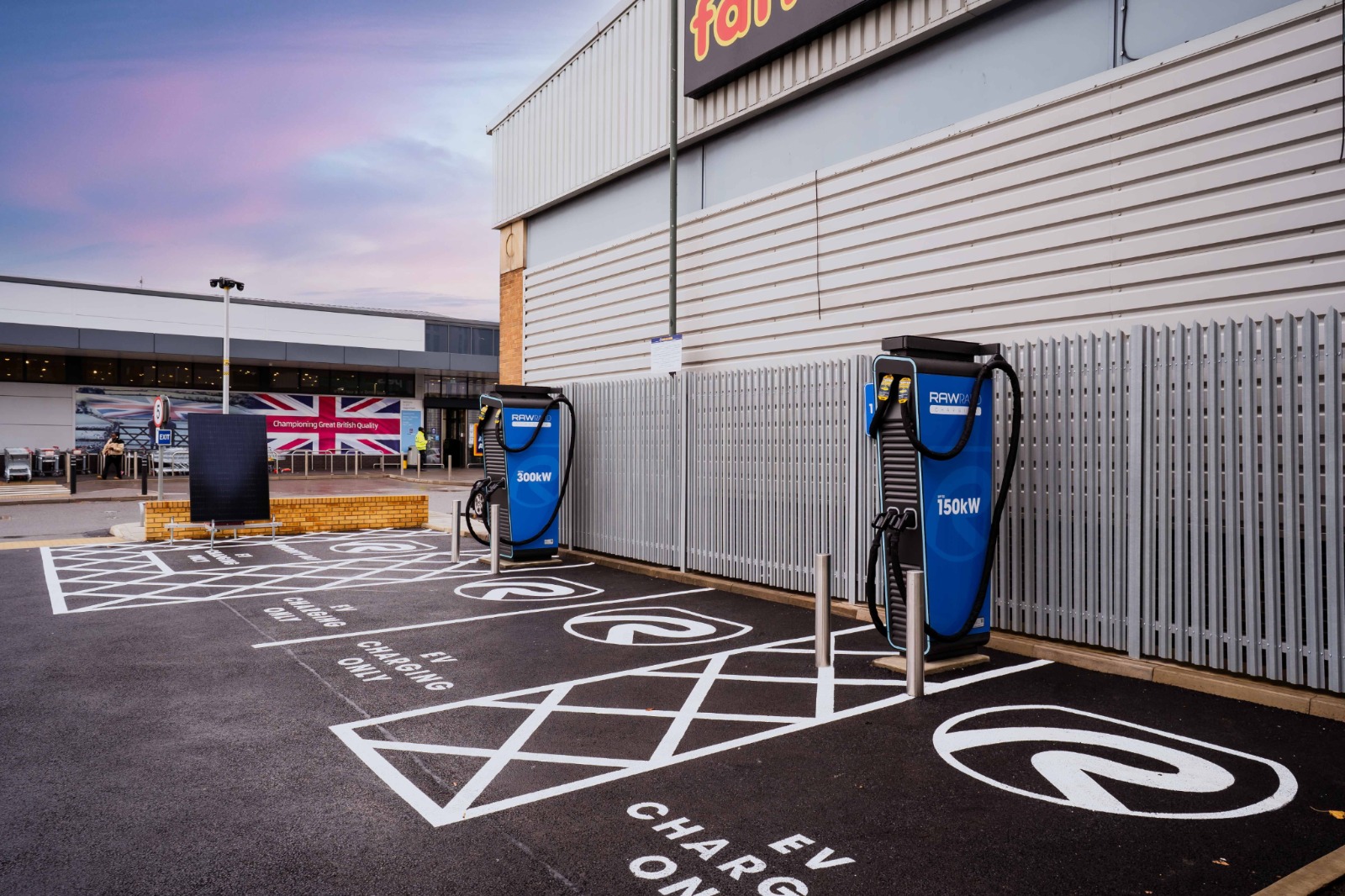

Two blue rapid charging units standing against a palisade fence at a retail park, serving freshly marked EV charging only bays outside a large store
ULTRA-RAPID RETAIL CHARGINGCommercial / CPO

Merrielands Retail Park, Dagenham, Rapid Charging Hub

Detailed electrical infrastructure design for a new RAW Charging hub at Merrielands Retail Park in Dagenham.

Read the full case study →

Delivered by

Premier Electrical Services Limited

Deliverables

Electrical charging layout · HV and LV infrastructure coordination · distribution design · cable calculations and schedules · protection coordination · fault-level and voltage-drop assessment · load-management requirements · Alpitronic HYC150 and HYC300 integration · underground duct design · external lighting supplies · designer's risk assessment

This scheme is an example of our specialist electrical design work.
